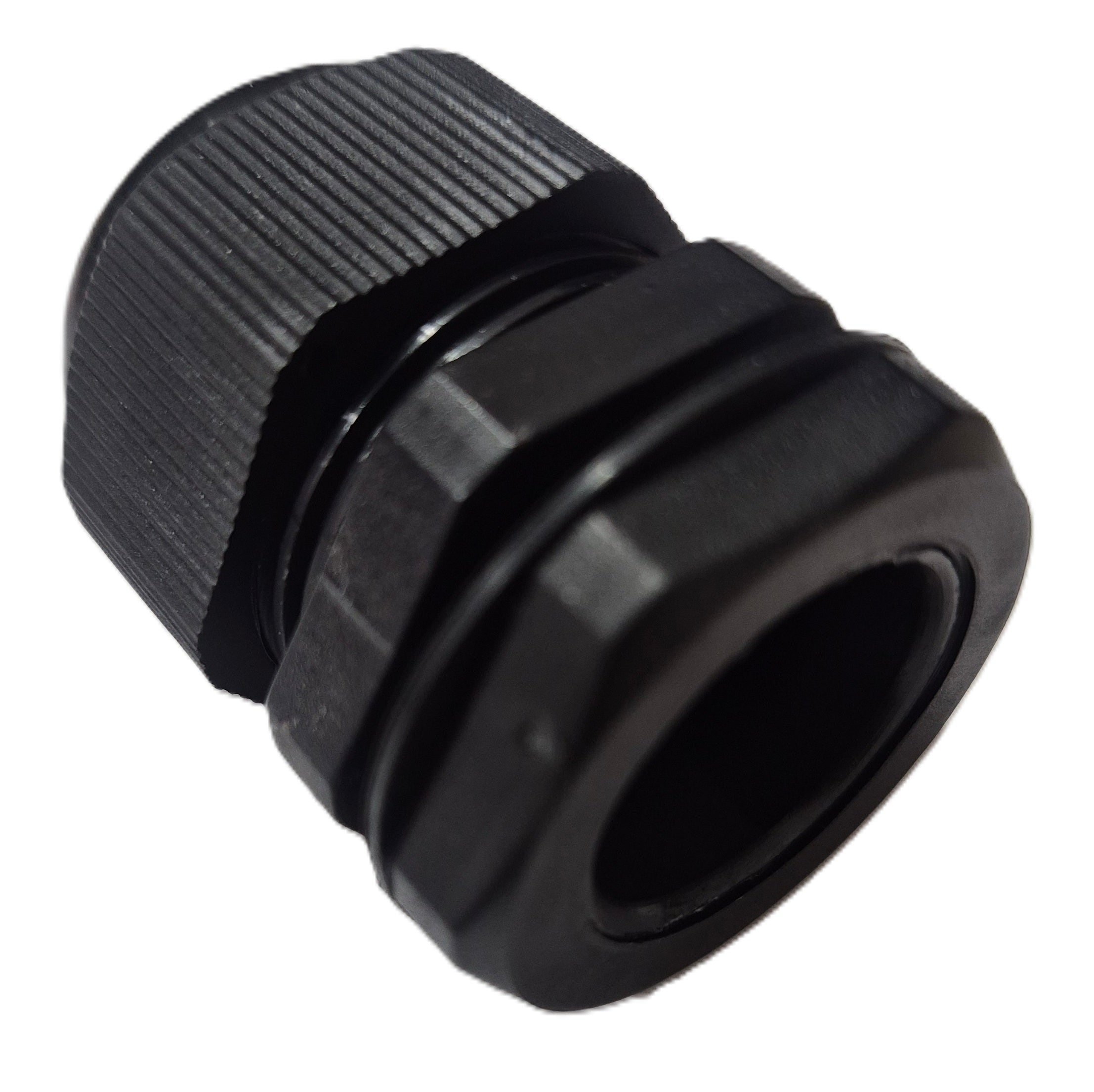

MGN-16

IP RatingNylon Cable Gland (Metric)

Unit of Measure : Each

Threaded Entry: Metric
Material: Parts A,C,E,F are made of Nylon 66, characterised by high fire resistants with its flamability rating UL94V-2. Parts B,D are
made from EPDM Neoprene.
Colour: Black
Working Temperature: -40C - 100C
Protection: IP 68
Standard: IEC698

Part
Number

Threaded Entry
(mm)

Cable Range
Dia (mm)
Thread
O.D (mm)
Panel Mount
Hole
(mm)
Thread Length
(mm)
Sealing Nut
Size
(mm)
Lock Nut
Size (mm)




MGN-12
M12 x 1.5
7.6 - 4.6
12
12.5
8.5
8.5
8.5


MGN-16
M16 x 1.5
10 - 6
16
16.5
15
15
15


MGN-20
M20 x 1.5
14 - 9
20
20.5
15
15
15


MGN-25
M25 x 1.5
18 - 13
25
25.5
15
15
15


MGN-32
M32 x 1.5
25 - 18
32
33
15
15
15


MGN-40
M40 x 1.5
30 - 24
40
41
20
20
20


MGN-50
M50 x 1.5
39 - 30
50
51
22
22
22


MGN-63
M63 x 1.5
48.5 - 40
63
64
25
25
25
