MGN-20
AUD $0.76
Sale price
AUD $0.76
Regular price
Skip to product information
MGN-20
AUD $0.76
Sale price
AUD $0.76
Regular price

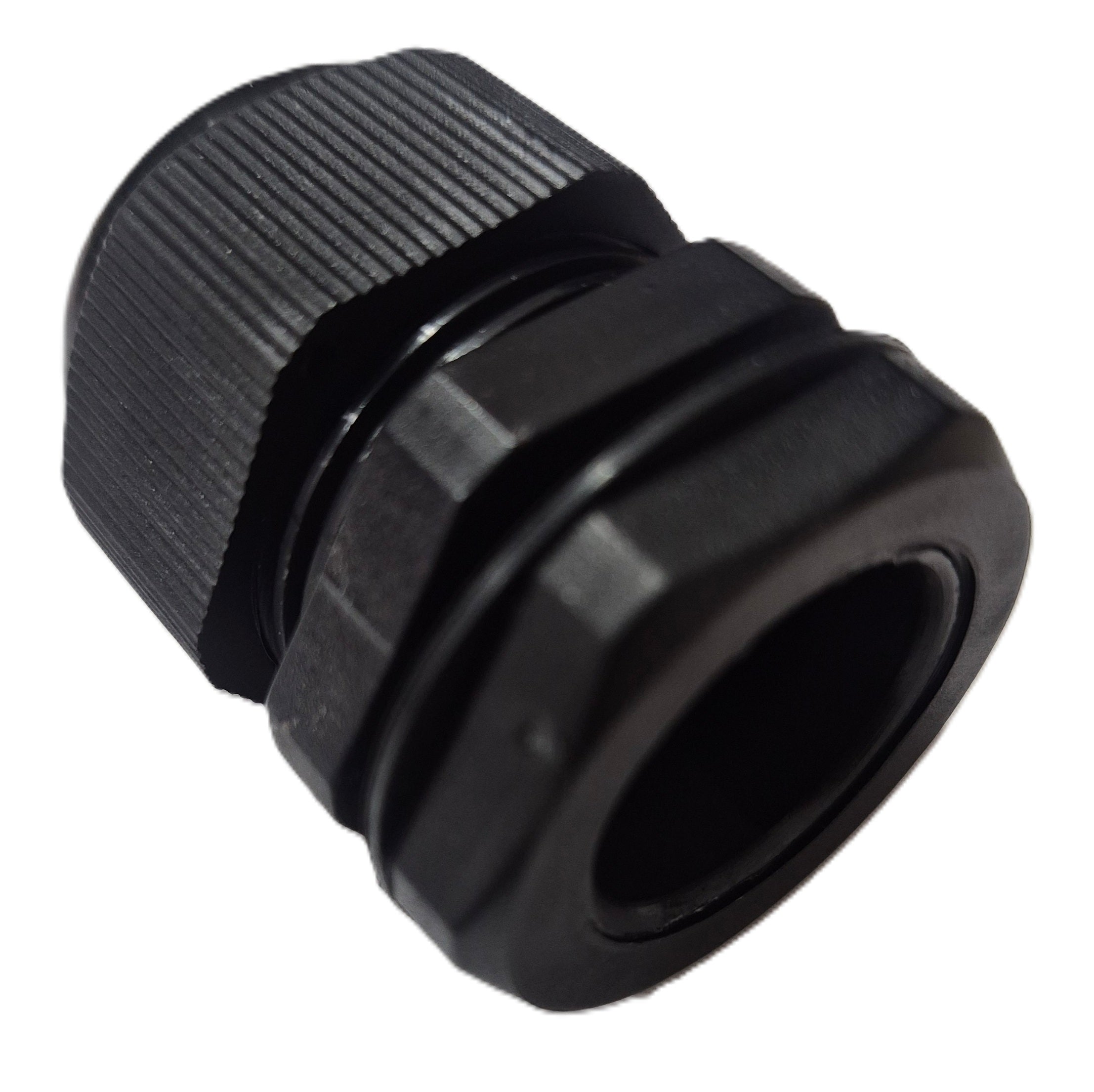

IP Rating Nylon Cable Gland (Metric)
Unit of Measure: Each
Threaded Entry: Metric
Material: Parts A,C,E,F are made of Nylon 66, characterized by high fire resistance with its flammability rating UL94V-2. Parts B,D are made from EPDM Neoprene.
Colour: Black
Working Temperature: -40C - 100C
Protection: IP 68
Standard: IEC698
Part Number: MGN-20
Threaded Entry: M20 x 1.5mm
Cable Range Diameter: 14 - 9mm
Thread O.D: 20mm
Panel Mount Hole: 20.5mm
Thread Length: 15mm
Sealing Nut Size: 15mm
Lock Nut Size: 15mm
Stock and Availability Message
If you require something urgently, please contact us for stock availability and lead time.
